FEATURES

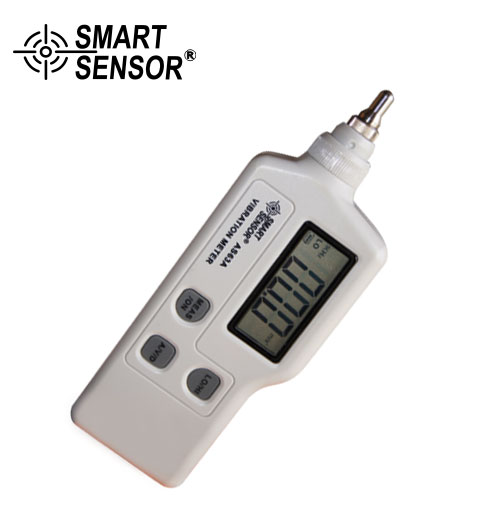

Vibration meter(also called vibration severity) uses Piezoelectric Acceleration Transducer transfer the vibration signal in to electrical signal, analyze the input signals, and show the Acceleration, speed, shift of the vibration. It is widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.
SPECIFICATIONS
Measuring Principle | Piezoelectric Ceramic Accelerometer (shear-type) |
Acceleration Range | 0.1~199.9m/s2 |
Velocity Range | 0.1~199.9m/s |
Displacement Range | 0.001~1.999mm |
Acceleration Frequency Range | 10Hz~1KHz (LO) 1KHz~15KHz (HI) |
Velocity Frequency Range | 10Hz~1KHz |
Displacement Frequency Range | 10Hz~1KHz |
Accuracy | ±5%H ±2 digits |
Signal Output | AC output 2V peak ( Display full scale ) |
Max Hold Function | ----- |
Temperature Measurement | ----- |
℃/℉Selection | ----- |
PACKING INFORMATION
Power | 9V Battery |
Product Net Weight | 147g |
Product Size | 183*67*30mm |
Packing Style | Gift Box |
Standard Quantity Per Carton | 10PCS |
Standard Carton Size | 45*32*55cm |
Standard Carton Gross Weight | 14.17kg |
