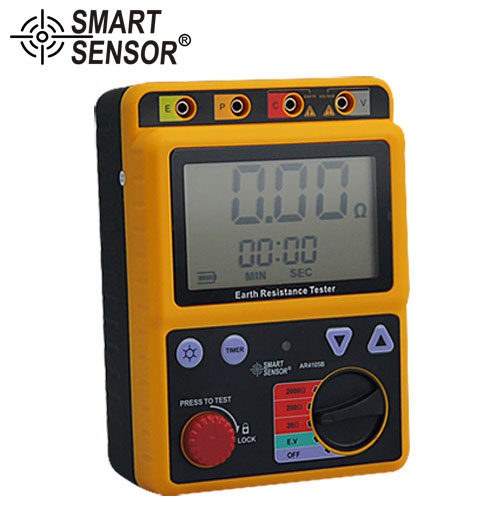

Grounding resistance meter is used to test the electric power, post and telecommunications, railway, communications, mining and other department measuring grounding resistance of various devices and measuring low resistance of the conductor resistance and voltage.
SPECIFICATIONS |
|
Measuring Style | 2 lines /3 lines |
Measuring Range | 0.00~20Ω 0.0~200Ω 0~2000Ω |
Accuracy | ±2%rdg±0.1Ω(20Ω) ±2%rdg±3dgt(200Ω/2000Ω) |
grounding Steel Nail | 2 pcs |
Grounding Line | 5 lines |
Grounding Voltage | ±1%rdg±4dgt |
PACKING INFORMATION |
|

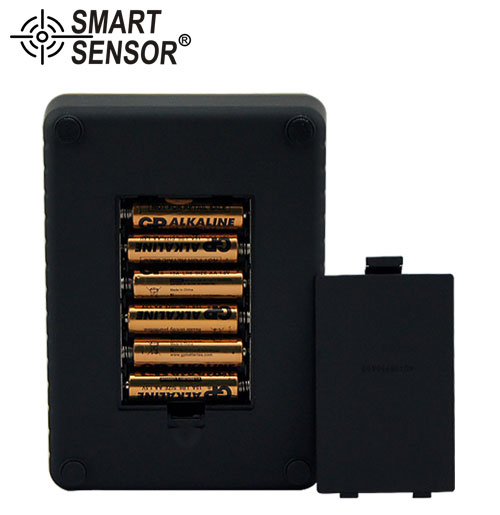

Power | AA*6 battery |
Product Net Weight | 675g |
Product Size | 170*120*79mm |
Packing | Knapsack |
Standard Carton Size | 61.5*38*27cm |
Standard Carton Gross Weight | 6kg |
