FEATURES

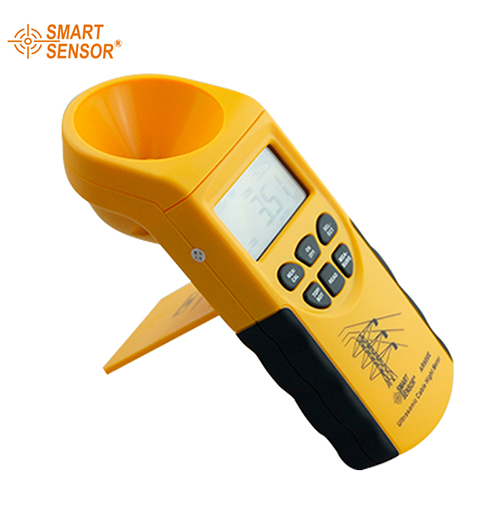

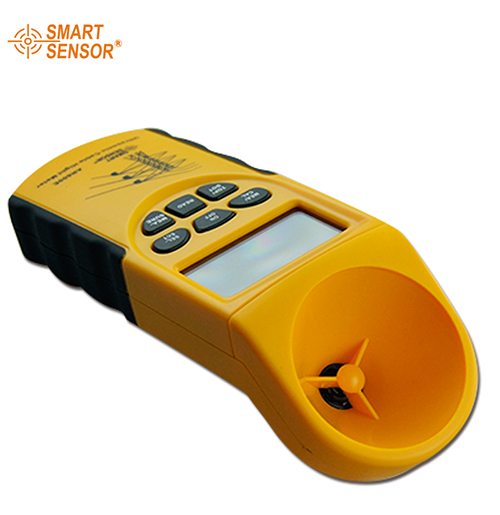

This Ultrasonic Cable Height Meter is a user friendly and easy-to-operate instrument. A circuit maintenance can make measurement of cable height.
The AR600E with the Horizontal Adapter can be used for depth measurement, (examples: An elevator shaft or well) provided there is sufficient width to permit a proper ultrasonic reflection.
Typical Measurement Applications: Electrical, Forestry, Industrial, Mining, Overhead cables, Tree branches, Elevator shafts, Depth of Wells.
SPECIFICATIONS
MeasuringRange | 3 ~ 23m |
HorizontalMeasuring Range | 3 ~ 18m |
Resolution | ±5mm(<10m) ±10mm(>10m |
Minimum Gap Between Wires | 150mm |
Auto Power Off | √ |
Backlight Display | √ |
Operation Condition | -10°C~40°C |
Battery Indication | √ |
BOT Mode | measuring the height of the lowest 6 cables |
TOP Mode | measuring the height of the highest 6 cables |
PACKING INFORMATION

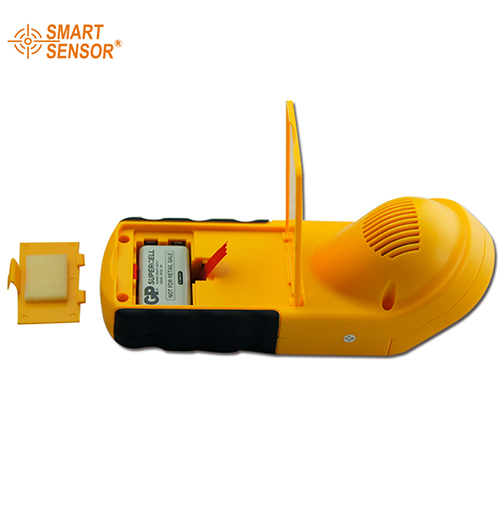

Power | 9V Battery |
Product Net Weight | 205g |
Product Size | 75*72*200mm |
Packing | Gift box |
Standard Quantity Per Carton | 12 |
Standard Carton Size | 52*33.5*47cm |
Standard Carton Gross Weight | 11.46kg |
